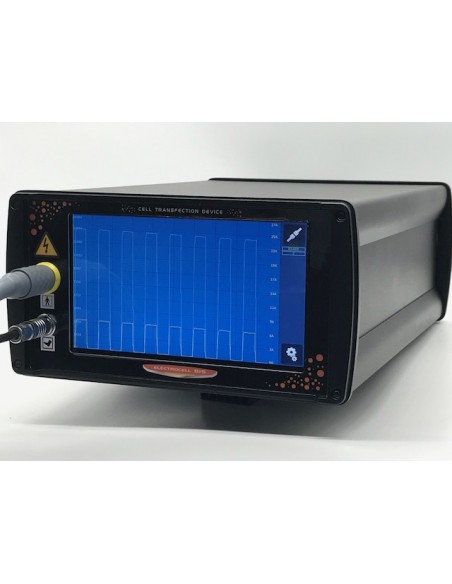

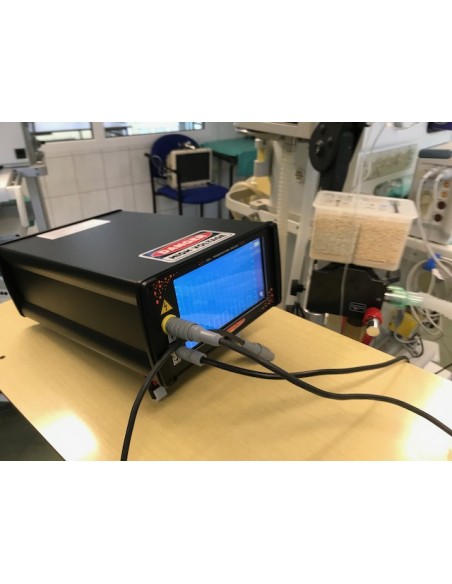

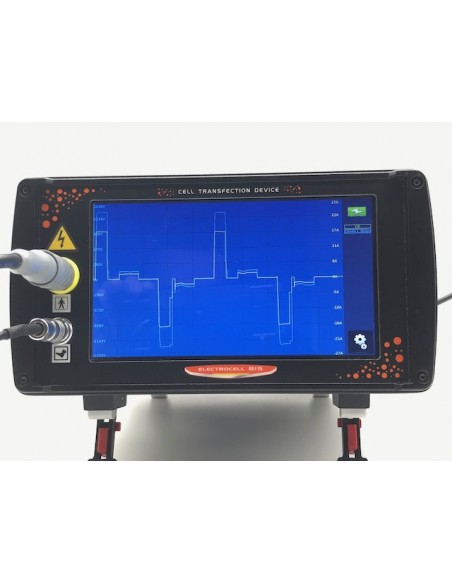

ELECTROcell B15 key features:
- Delivers versatile pulses for research (multi HV, LV) and standard electrical protocols
- +/-1,500 Volts for high voltage
- +/- 200 Volts for low voltage

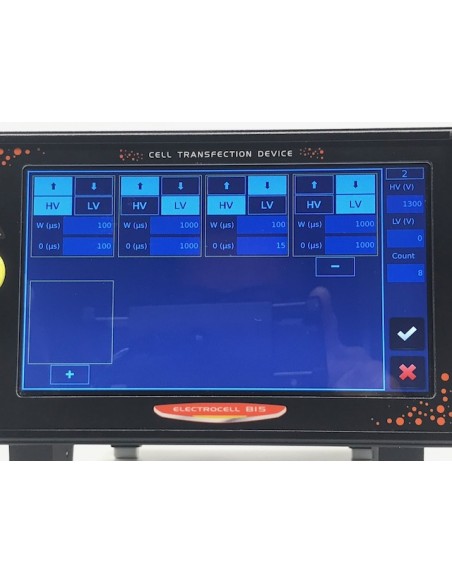

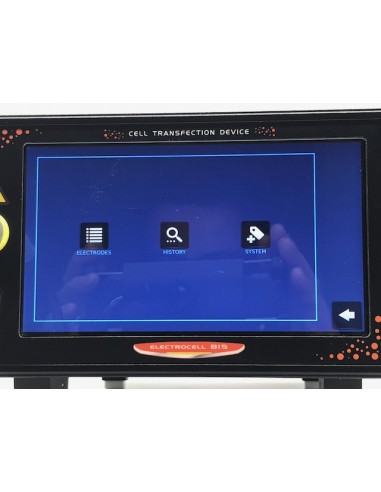

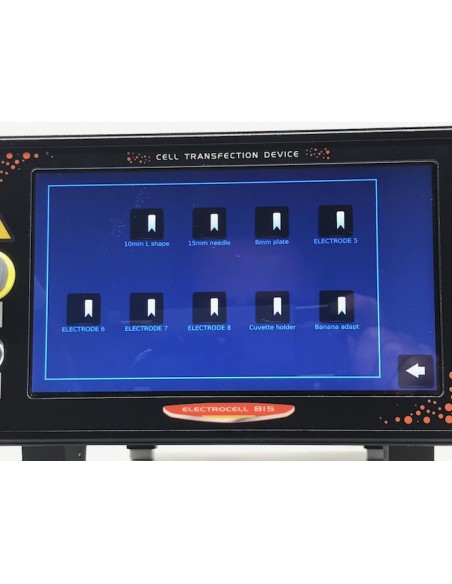

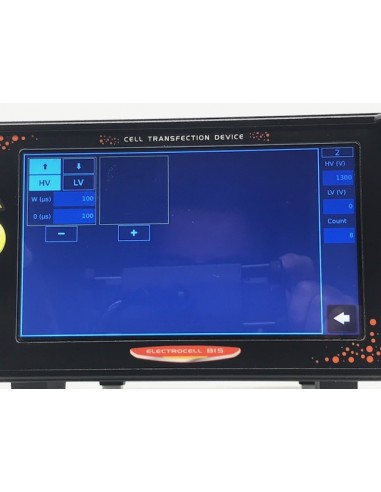

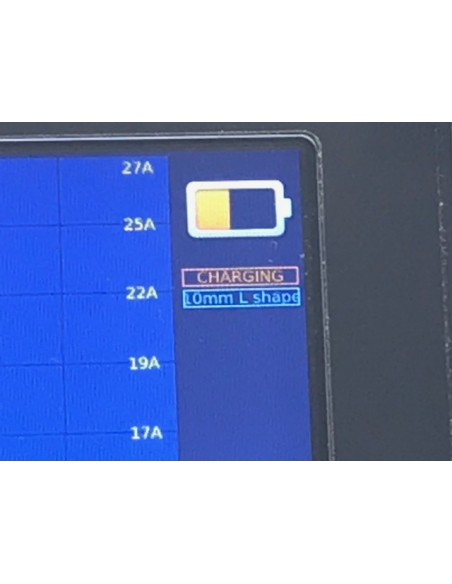

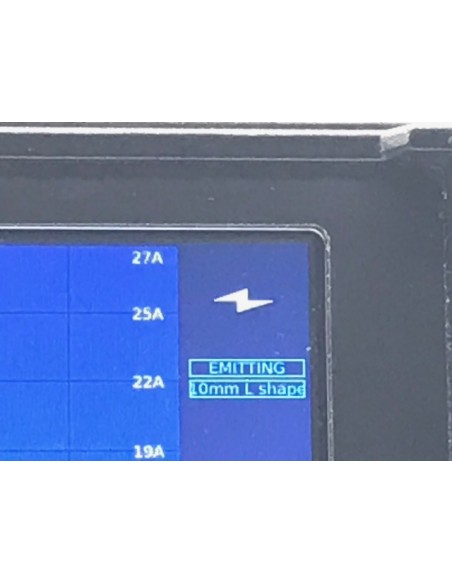

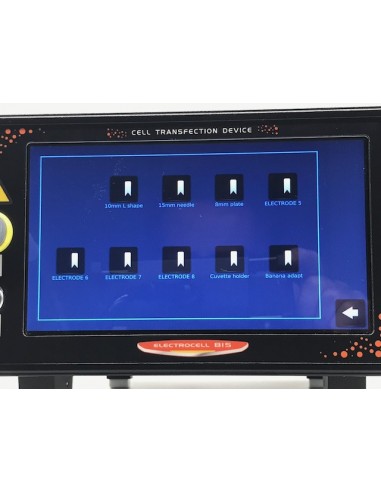

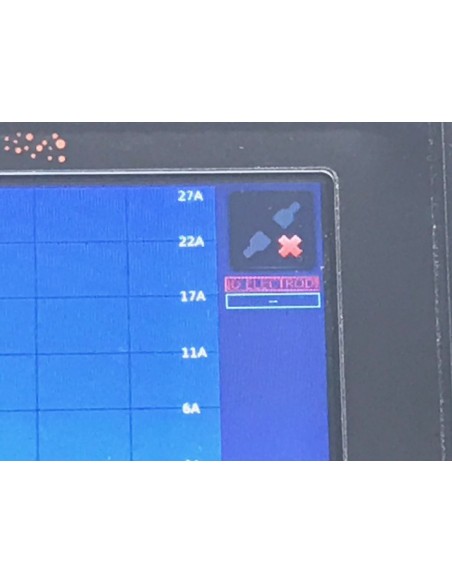

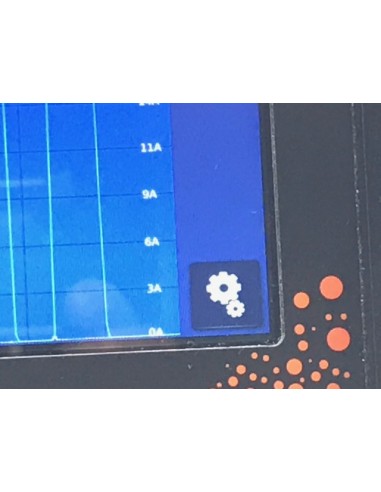

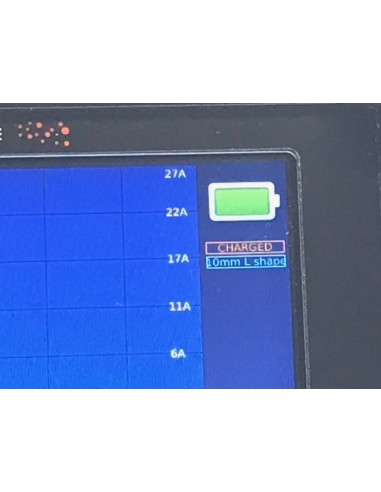

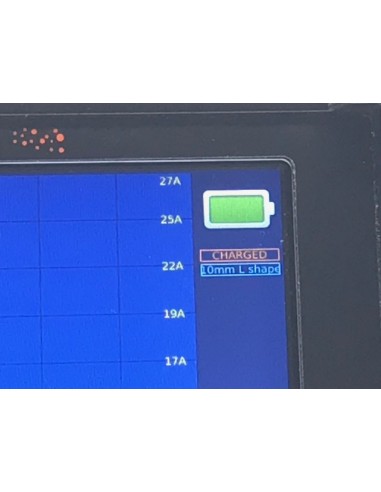

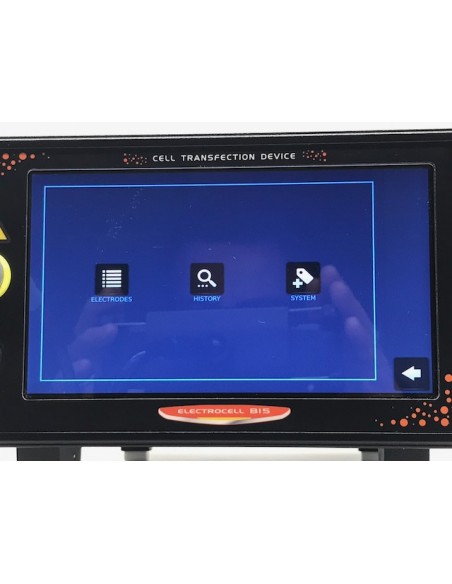

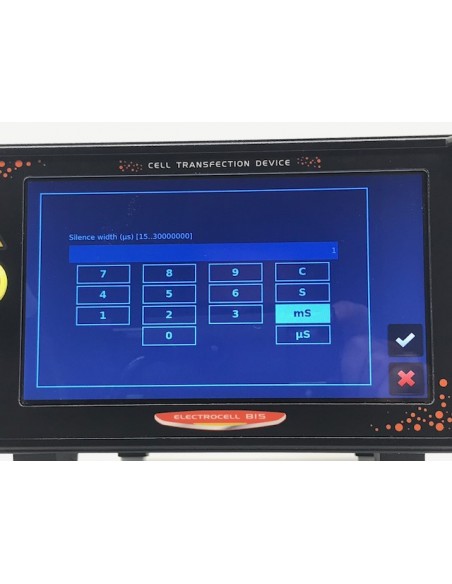

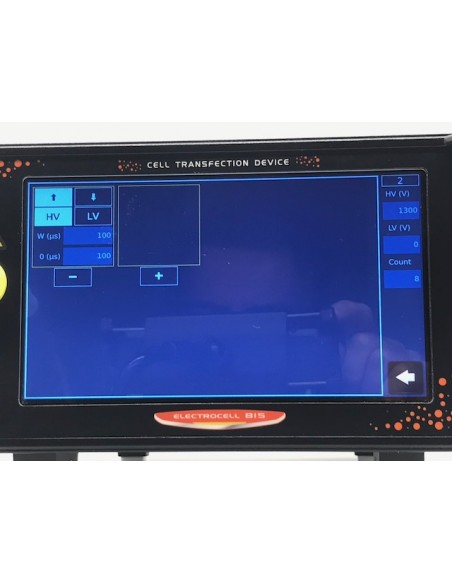

- 7" touchscreen to set up parameters and retrieve delivery data

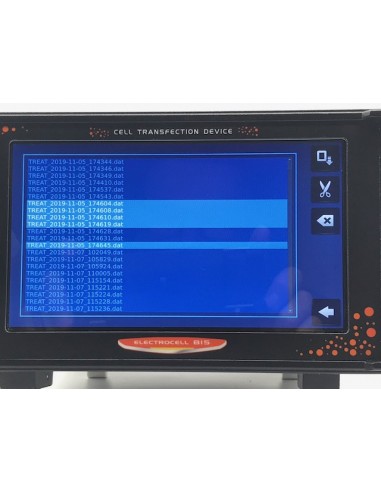

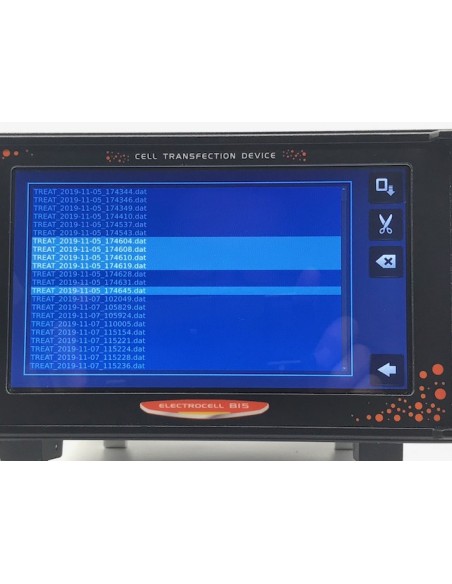

- Pulses delivered history saved on the 16GB USB key, included with the machine

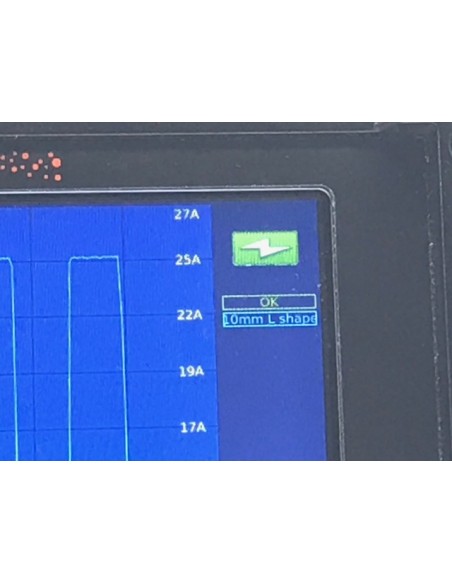

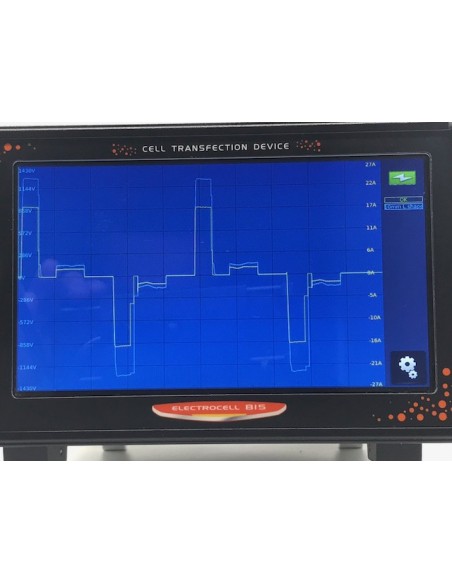

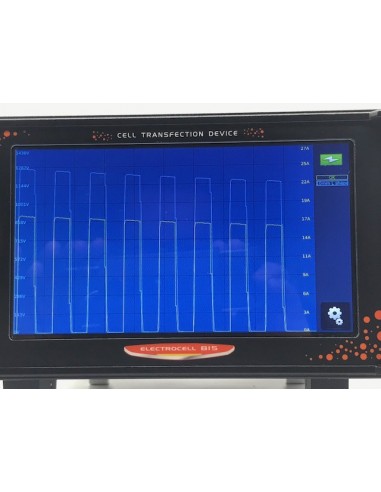

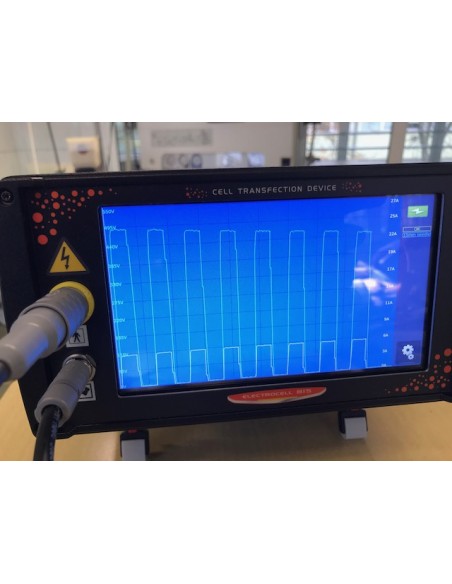

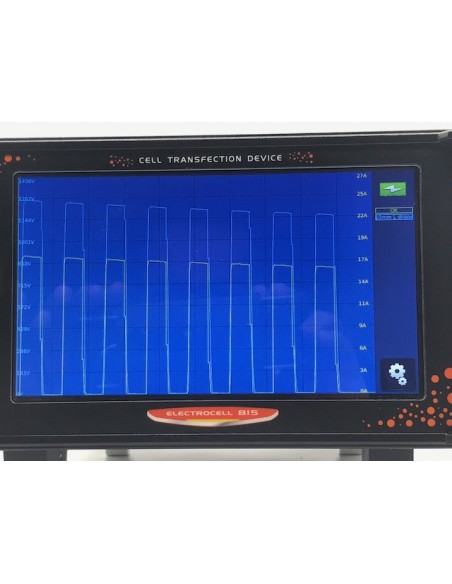

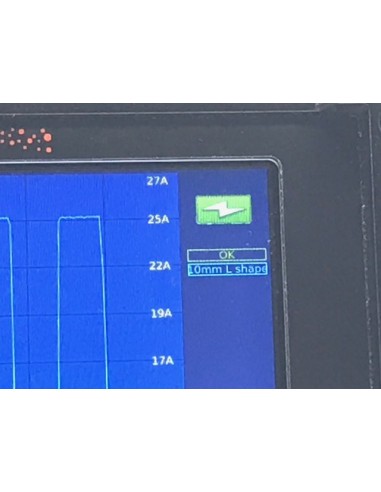

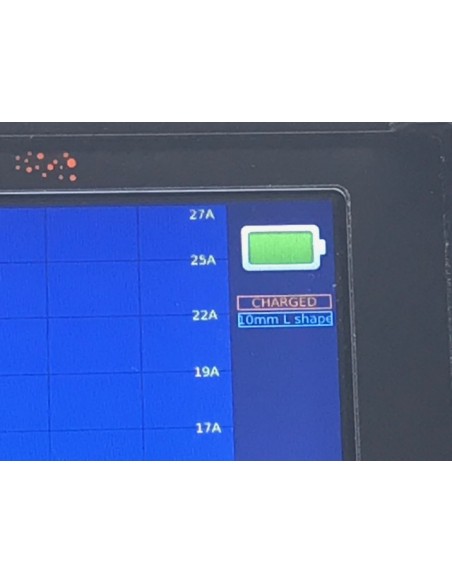

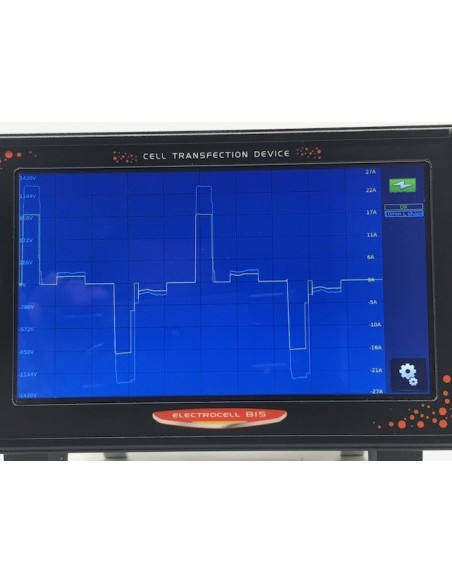

- Instant measurement and display of current and voltage

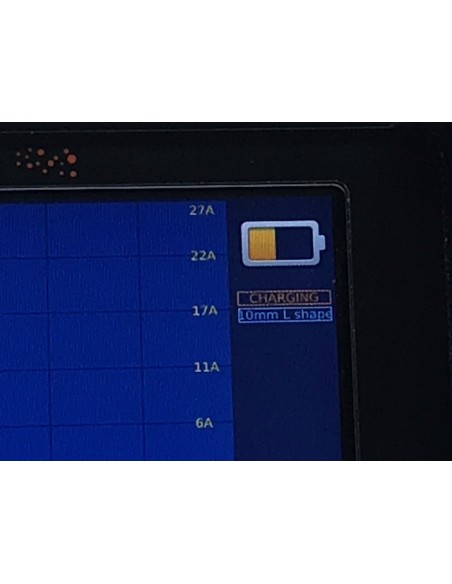

- Double foot-switch to charge the electroporator and control delivery of electrical pulses
- CE mark for preclinical studies
- Electrocardiogram connector ensures that the pulses are delivered only when the heart ventricles are open
5-year warranty

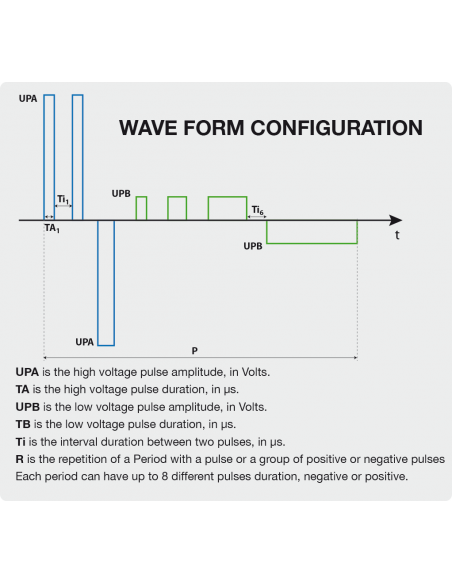

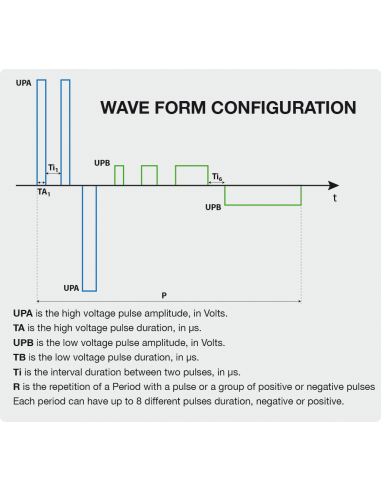

High voltage pulse |
Low voltage pulse |
|
Voltage (UPA) ± 30 .. ± 1,500 V Maximum current 24 A Typical HV capacity 97.5 (±20%) μF Activation of the disconnection 25 A Recycling time 90% PE < 4 s Voltage resolution 0.5 V Pulse duration (TA) 5...5,000 μs Resolution 5 μs Accuracy > 99% Repetition frequency (1 / P) 0,01..20 kHz |
Voltage (UPB) ± 10 .. ± 200 V Max Power 500 W Recycling time 90% PE 100 ms Accuracy > 98% Pulse duration (TB, TI) 5..30,000,000 μs Resolution 5 μs Repetition frequency (1 / P) 0.01..20 kHz Commutation Rise time 10 to 90% of PE 400 ns |
